CamVac

$759.00$2,794.00

The CamVac offers a non-invasive way to locate a leak in all types of plumbing. Using controlled vacuum, the CamVac System draws air from outside of the pipe, allowing the camera to locate and isolate the precise area where the leak is.

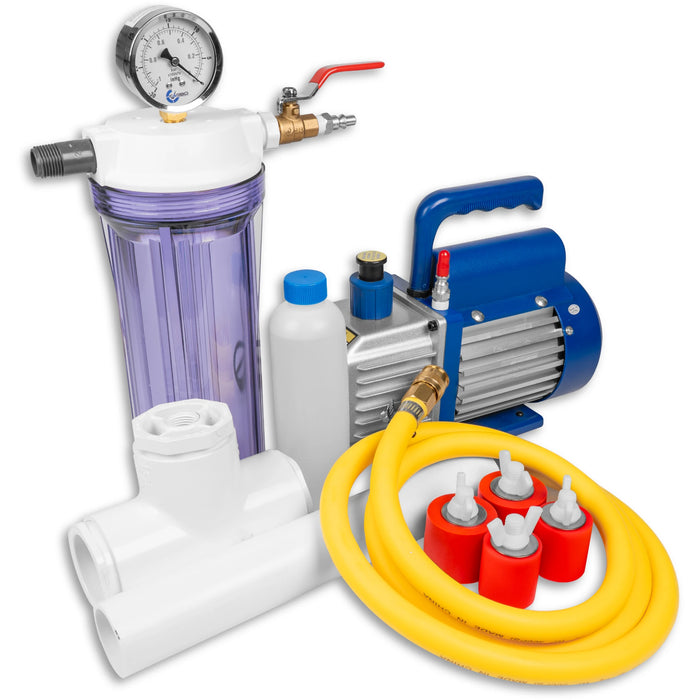

The CamVac System Includes:

  • 1 – Controllable Pump
  • 1 – CamVac Assembly (w/pressure gauge, valve, drain canister)
  • 1 – Length of Connector Hose
  • 2 – 1.5 Inch Compression Plugs
  • 2 – 2 Inch Compression Plugs
  • 1 – Convenient Water Resistant Duffle Bag

THE CAMVAC CAN BE ORDERED WITH SELECTED OPTIONS:

  • CamVac System: $759
  • With the Standard Hand Held Video Pro: $2,673
  • With the Hand Held Video Pro 1.5: $2,794

Description

LeakTronics CamVac System uses the power of controlled vacuum to create a visible leak that is easily seen using the Hand held Video Pro Cameras. The CamVac is perfect for standard plumbing, swimming pool applications; virtually anywhere you have a pipe leak.

By attaching the CamVac System to an isolated pipe and applying a controlled vacuum from the included pump, you’ll draw air into a water filled line, or saturation into an empty pipe and see, without question, where the leak is in the pipe using the Held Video Pro Camera from LeakTronics. It takes just a small amount of vacuum – just 1-3 lbs – and the crack, leak or break in the line is revealed. You’ll see the turbulence in the fluid of a water filled line before you get to the leak – and when you do, you’ll see the extent of the damage in the line and be able to diagnose it instantly.

Using the meter counter or LeakTronics Sonde Technologies, you will know just where the leak is underground. You can identify the precise location of the leak and reduce invasive techniques for making the repair by knowing right where digging needs to take place.

The CamVac is available as a stand alone purchase that can be used with your current camera set-up, or it can be combined with the purchase of the Hand Held Video Pro Cameras from LeakTronics at a reduced package price.
















CLICK TO VIEW USER MANUAL

Additional information

Weight 20 lbs
Dimensions 22 × 14 × 10 in
